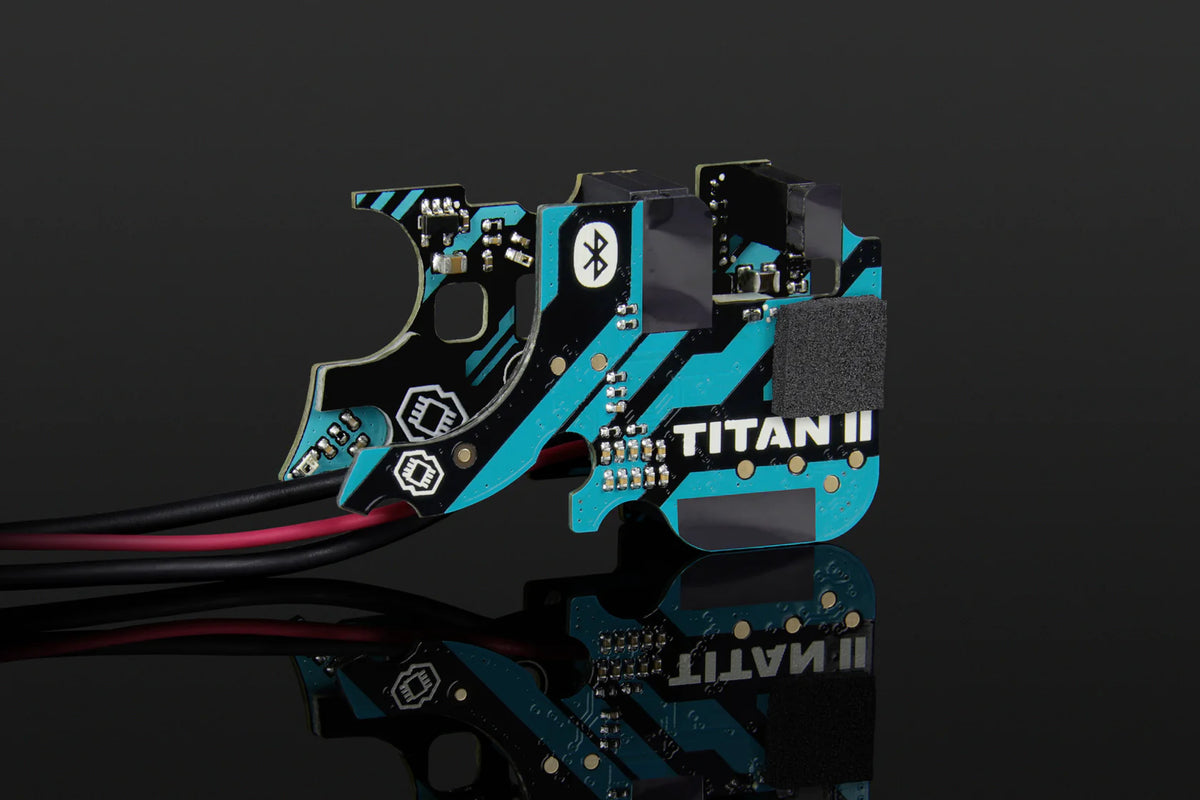

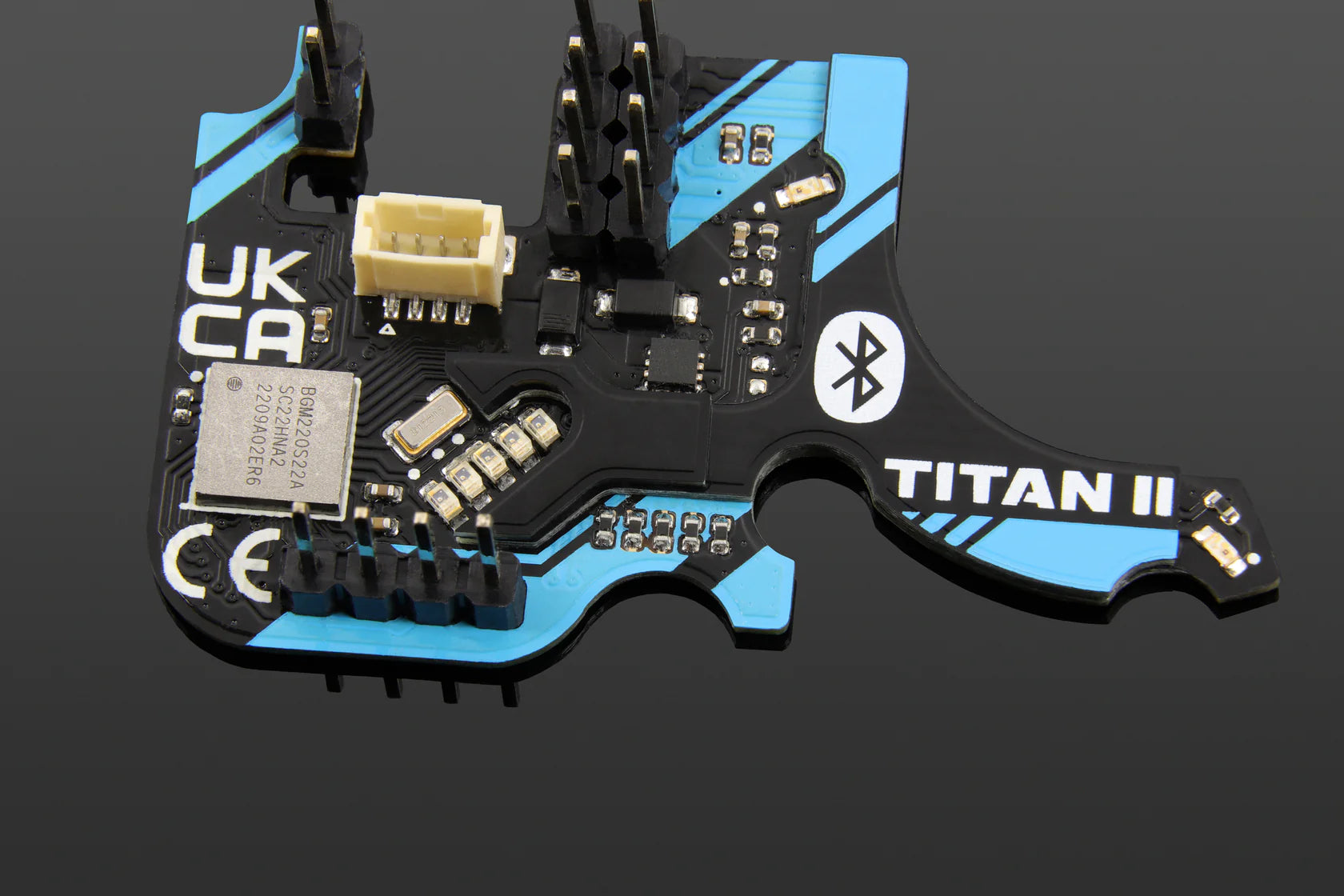

GATE TITAN II Bluetooth® EXPERT V2 gearbox drop-in ETU FCU mosfet AEG

2x Multifunctional Port

Connect additional accessories such as bolt catch, magazine sensor, external trigger and selector sensors

To use the hpa capabilities, you need the hpa wiring that is sold separate. this unit is wired to aegs out of the box

Compatible Accessories:

- Power supply cable (GEL BLASTER/Electric Magazine/Tracer)

- Cable for single solenoid HPA

- Cables for dual solenoid HPA

- Divider ready for connecting many accessories (you can connect 1x power supply cable and 2x I/O cable)

- Universal I/O cable for max. 2 DIY accessories (Bolt-catch, Magazine sensor, Flashlight)

- Bolt-catch with button and cable (ready to connect)

- Magazine sensor with cable (ready to connect)

Supply Voltage Range

3.75-17 VDC

Rated Current

30 A

Current Consumption

27 mA

Low Power Mode

100 µA

Connectivity

Bluetooth® 5.2 Low Energy

Dimensions (Length x Width x Thickness)

47.2 mm x 28.9 mm x 14.5 mm

Finished Product Weight

28.2 g

Operating Temperature Range

min. -15° C, max. +50° C

Relative Humidity

≤ 80%

Programmable power supply with eFuse

Connect additional accessories such as hop-up chamber tracer and electric magazines
