Perun V2 Hybrid Low Resistance MOSFET for AEG V2 (Rear Wired)
Perun V2 Hybrid Low Resistance MOSFET for AEG V2 (Rear Wired)

Perun V2 Hybrid Low Resistance MOSFET for AEG V2 (Rear Wired)

$74.00

Perun V2 Hybrid Low Resistance MOSFET for AEG V2 Perun Hybrid is a device that replaces mechanical contacts in version 2...

Add to Wishlist
SKU: HB-V2-BW
Availability : In Stock Pre order Out of stock
Description

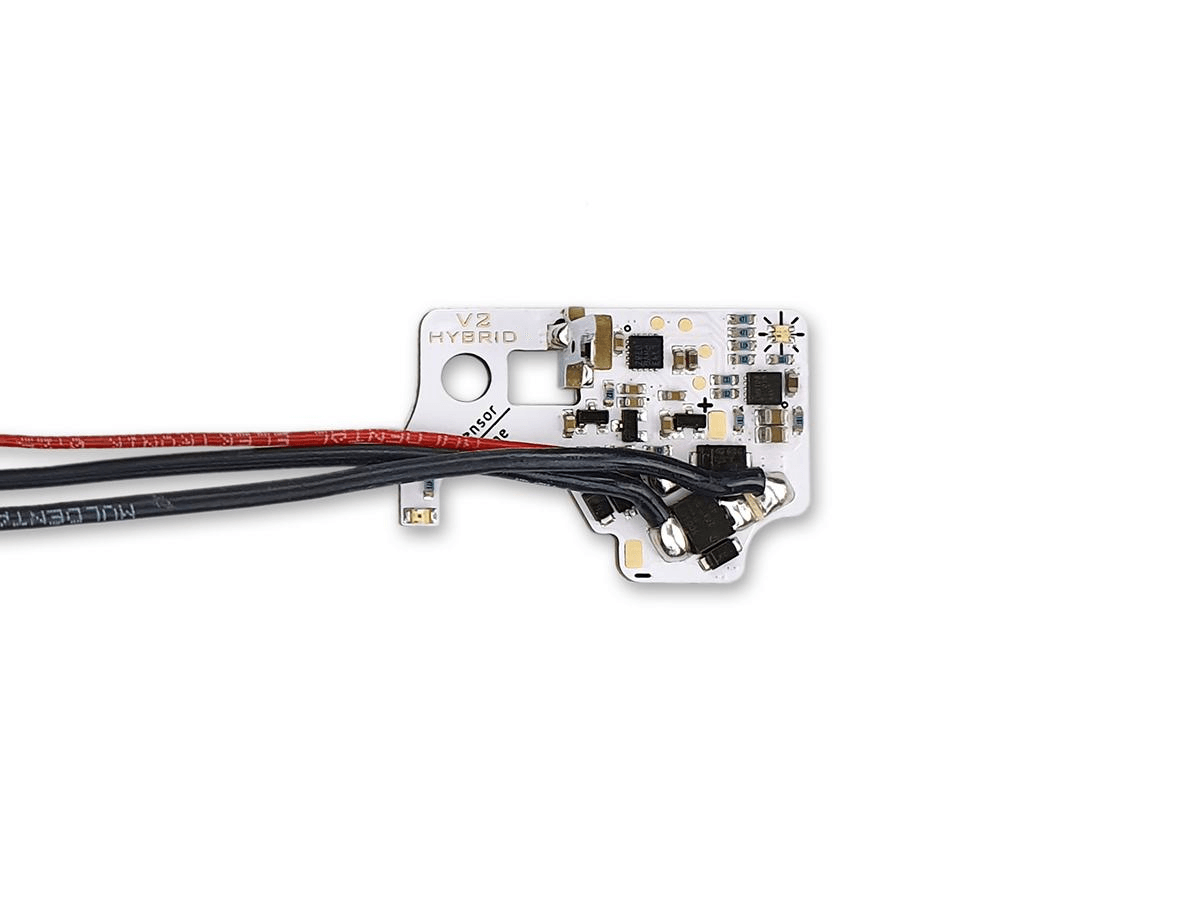

Perun V2 Hybrid Low Resistance MOSFET for AEG V2

Perun Hybrid is a device that replaces mechanical contacts in version 2 and 3 gearboxes with an electronic circuit based on MOSFET transistors and adds a multitude of new functions to your airsoft gun.

Elimination of mechanical contacts solves the problem of their gradual wear. MOSFET transistors utilized in Perun Hybrid have a much lower resistance than contacts, which also increases rate of fire. Small elements in the trigger mechanism responsible for semi-automatic fire frequently malfunction, especially in replicas built on parts made by many different manufacturers. Perun Hybrid minimizes the number of moving parts in your replica, increasing reliability and ensuring proper functioning of all firing modes. Perun  Optical itself has no moving parts at all thanks to use of optical sensors for gear, trigger and selector plate detection.

Use of a microcontroller enhances capabilities of your airsoft gun by providing possibility to set any combination of the following firing modes under "SEMI" and "AUTO" selector positions independently:
- safe
- semi-automatic
- 2 to 5 round burst
- full-automatic
Programming of all of the settings, not only firing modes but also switching active brake, precocking and battery protection on and off is done solely by using easily memorable sequences of fire selector switching and trigger pulls. That allows changing the settings at any moment in a matter of seconds, even under enemy fire.



Perun Hybrid works well with DSG setups, because optical sensors are not subject to mechanical stress seen in high ROF setups. Our tests have shown that in some DSG setups precocking may be less reliable and has to be disabled. However, ROF provided by DSG makes use of precocking rather unnecessary.

One of the most important features of Perun Hybrid is precocking. Fast trigger response can be a matter of victory or defeat, especially in CQB situations. With precocking enabled, piston will remain in rear position after each shot with spring already compressed, ensuring that next shot will be fired immediately after you pull the trigger. Microcontroller uses data from optical sensor to calculate current sector gear position and speed. With this information, after releasing the trigger, smart algorithms are able to transfer only enough power to the motor to make the piston stop in the correct position, or in high ROF setups, to let the motor inertia push the piston back and stop it using active braking right. This saves your battery and reduces motor wear. Precocking works in semi, burst and full-automatic modes.

Perun Hybrid has an active brake allowing to stop the motor after each shot. In case of double shot problem in replicas with high rate of fire, active brake will be an effective solution if you do not want to use precocking. It can also prevent compression of the main spring for a longer time, if you will fire a shot with AB on before a storing your replica for a longer time. Active brake can be switched on or off at any time in few seconds.

Battery protection mode is dedicated to Li-Po batteries. Should the battery voltage fall to a dangerously low level, user will be notified by short sound signals that are repeated every 30 seconds. This may also be freely switched on and off.

Double shot mode allows for easy double shots in semi-automatic setting. After enabling this mode, if semi-automatic fire is set, shots will be fired not only when the trigger is pressed, but also when it's released.

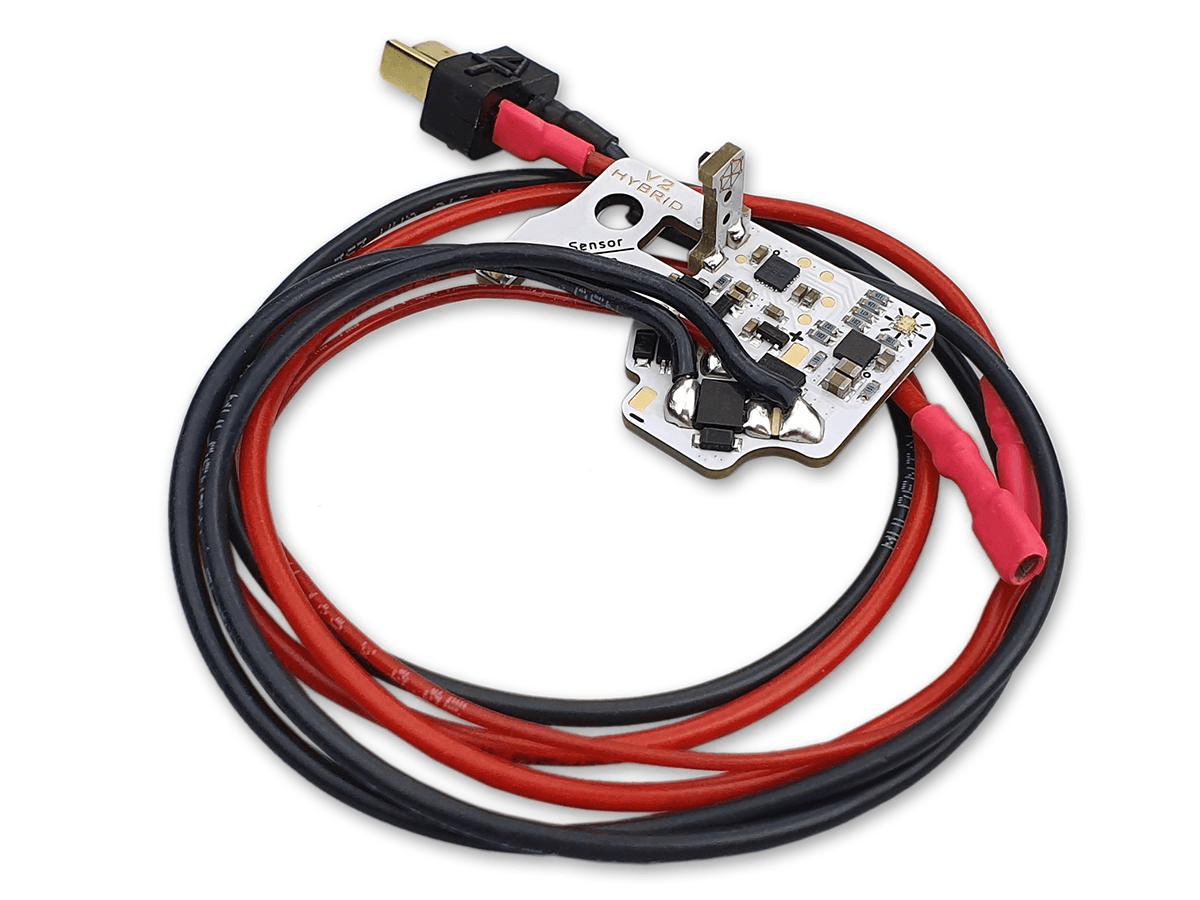

Perun Hybrid is delivered with Muldental silicone wires, which are praised by airsoft techs and widely considered best for airsoft electric guns.

Thanks to use of exceptionally efficient and powerful MOSFETs, the device can be used in replicas with any main spring. The maximum rate of fire is 50 RPS.
